M25P10 - 1 Mbit Low Voltage Paged Flash Memory With 20 MHz Serial SPI Bus Interface

Product Overview

STMicroelectronics

Part number	M25P10
Manufacturer	STMicroelectronics
File Size	162.30 KB
Description	1 Mbit Low Voltage Paged Flash Memory With 20 MHz Serial SPI Bus Interface
Datasheet	M25P10 Datasheet

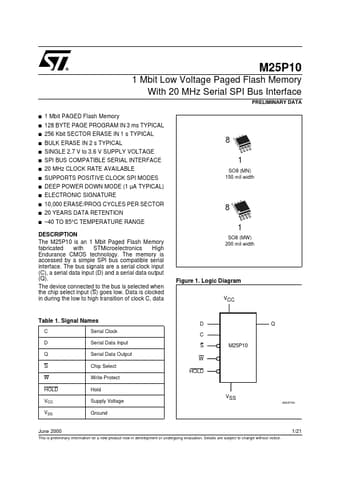

Additional preview pages of the M25P10 datasheet.

The M25P10 is an 1 Mbit Paged Flash Memory fabricated with STMicroelectronics High Endurance CMOS technology.

of the device are summarized in Table 3. Figure 4. Hold Condition Activation CLOCK HOLD PIN MEMORY STATUS ACTIVE HOLD ACTIVE HOLD ACTIVE AI02029B 3/21 M25P10 Figure 5. M25P10-Compatible SPI Modes CPOL CPHA 0 0 C 1 1 C D or Q MSB LSB AI01438 Clock Polarity (CPOL) and Clock Phase (CPHA) with SPI Bus As shown in Figure 5, the M25P10 can be driven by a microcontroller with its SPI peripheral running in either of the two following modes: (CPOL, CPHA) = (’0’, ’0’) or (CPOL, CPHA.
