M25P10-A - 1 Mbit/ Low Voltage/ Serial Flash Memory With 25 MHz SPI Bus Interface

The M25P10-A is a 1 Mbit (128K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory is organized as 4 sectors, each containing 128 pages..

M25P10-A Features

* SUMMARY s 1 Mbit of Flash Memory s Figure 1. Packages Page Program (up to 256 Bytes) in 1.5ms (typical) Sector Erase (256 Kbit) in 2 s (typical) Bulk Erase (1 Mbit) in 3 s (typical) 2.7 V to 3.6 V Single Supply Voltage SPI Bus Compatible Serial Interface 25 MHz Clock Rate (maximum) Deep Power-down

M25P10-A_STMicroelectronics.pdf

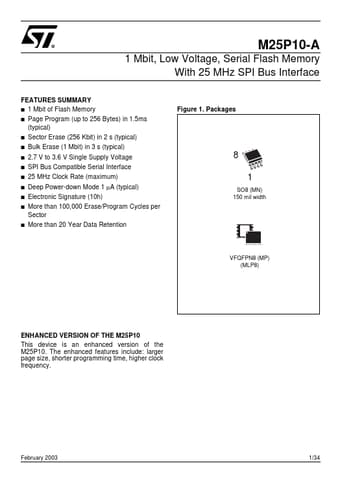

M25P10-A Datasheet Preview — Preview of M25P10-A PDF

Datasheet Details

Part number:

M25P10-A

Manufacturer:

STMicroelectronics ↗

File Size:

401.07 KB

Description:

1 mbit/ low voltage/ serial flash memory with 25 mhz spi bus interface.
