1N5811US - ULTRA FAST RECOVERY GLASS RECTIFIERS

This page provides the datasheet information for the 1N5811US, a member of the 1N5807US ULTRA FAST RECOVERY GLASS RECTIFIERS family.

Datasheet Summary

Description

This “Ultrafast Recovery” rectifier diode series is military qualified and is ideal for high-reliability applications where a failure cannot be tolerated.

Features

  • JEDEC registered surface mount equivalent of 1N5807, 1N5809, 1N5811 series.
  • Void-less hermetically sealed glass package.
  • Quadruple-layer passivation.
  • Extremely robust construction.
  • Internal “Category 1” metallurgical bonds.
  • JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/477.
  • RoHS compliant versions available (commercial grade only).

📥 Download Datasheet

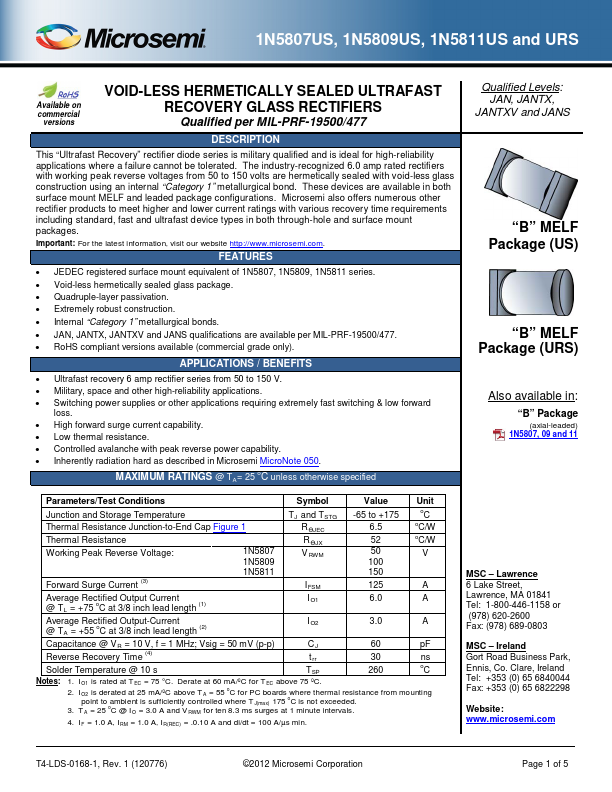

Datasheet preview – 1N5811US

Datasheet Details

Part number 1N5811US
Manufacturer Microsemi Corporation
File Size 259.57 KB
Description ULTRA FAST RECOVERY GLASS RECTIFIERS
Datasheet download datasheet 1N5811US Datasheet

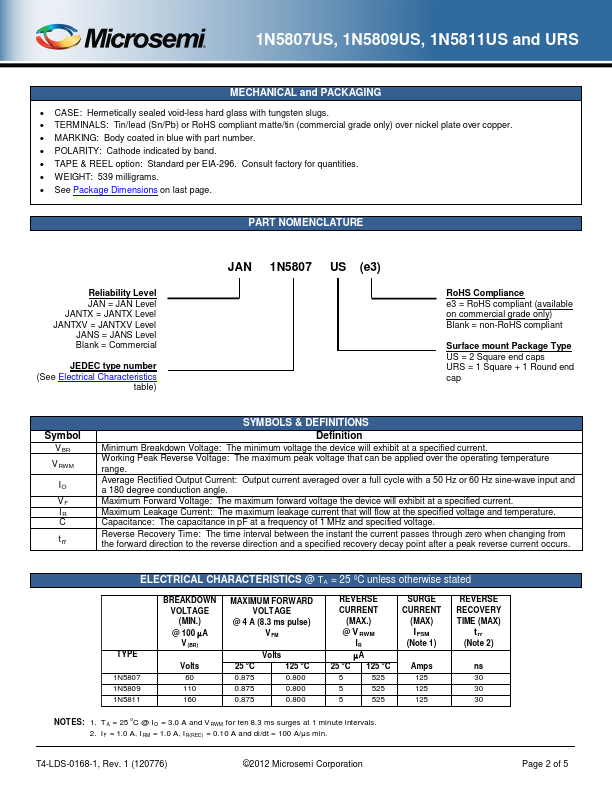

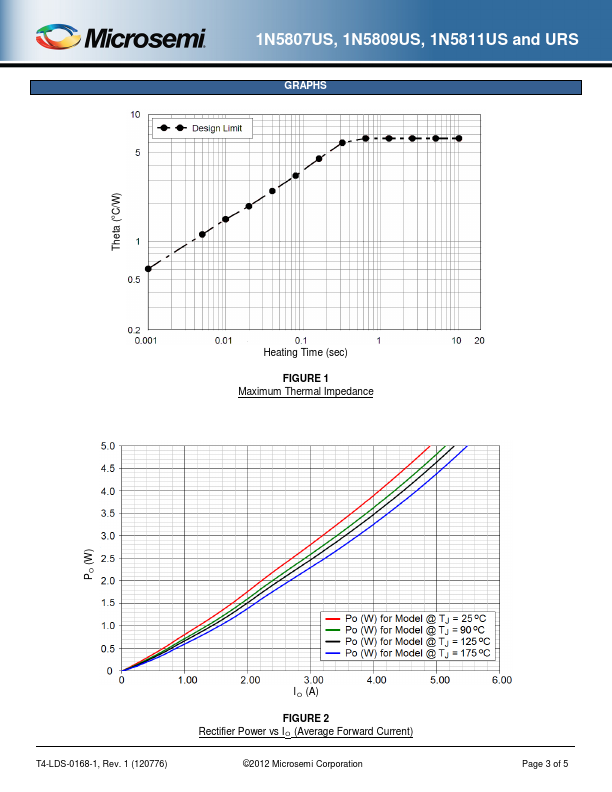

Additional preview pages of the 1N5811US datasheet.

📁 Similar Datasheet

  • 1N5811US - ULTRAFAST RECOVERY RECTIFIER DIODES (EIC)
  • 1N5811US - Rectifier Diode (MA-COM)
  • 1N5811U - Aerospace 150V 6A ultrafast rectifier (ST Microelectronics)
  • 1N5811 - Superfast Rectifier Diodes (Micross)
  • 1N5811 - RECTIFIERS (Solid State)
  • 1N5811 - VOID-LESS HERMETICALLY SEALED ULTRAFAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5811 - SUPERFAST RECTIFIER DIOSE (Semtech)
  • 1N5811 - Rectifier Diode (MA-COM)
  • 1N5811 - ULTRAFAST RECOVERY RECTIFIER DIODES (EIC)
  • 1N5811 - HIGH EFFICIENCY RECTIFIERS (Digitron Semiconductors)
Other Datasheets by Microsemi Corporation
  • 1N5802US - ULTRA FAST RECOVERY GLASS RECTIFIERS
  • 1N5803US - ULTRA FAST RECOVERY GLASS RECTIFIERS
  • 1N5804US - ULTRA FAST RECOVERY GLASS RECTIFIERS
  • 1N5805US - ULTRA FAST RECOVERY GLASS RECTIFIERS
  • 1N5806US - (1N5802US - 1N5806US) SURFACE MOUNT VOIDLESSHERMETICALLY- SEALED ULTRA FAST RECOVERY GLASS RECTIFIERS
  • 1N5807US - ULTRA FAST RECOVERY GLASS RECTIFIERS
  • 1N5809US - ULTRA FAST RECOVERY GLASS RECTIFIERS
  • 1N5820US - 3 Amp SQ-MELF Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text
1N5807US, 1N5809US, 1N5811US and URS Available on commercial versions VOID-LESS HERMETICALLY SEALED ULTRAFAST RECOVERY GLASS RECTIFIERS Qualified per MIL-PRF-19500/477 DESCRIPTION This “Ultrafast Recovery” rectifier diode series is military qualified and is ideal for high-reliability applications where a failure cannot be tolerated. The industry-recognized 6.0 amp rated rectifiers with working peak reverse voltages from 50 to 150 volts are hermetically sealed with void-less glass construction using an internal “Category 1” metallurgical bond. These devices are available in both surface mount MELF and leaded package configurations.
