2N1613L - NPN LOW POWER SILICON TRANSISTOR

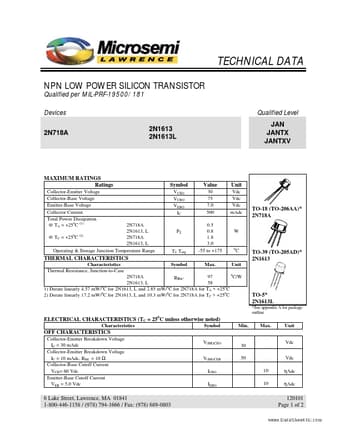

TECHNICAL DATA NPN LOW POWER SILICON TRANSISTOR Qualified per MIL-PRF-19500/181 Devices 2N718A 2N1613 2N1613L Qualified Level JAN JANTX JANTXV MAXIMUM RATINGS Ratings Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Power Dissipation @ TA = +250C (1) Symbol VCEO VCBO VEBO IC Value 30 75 7.0 500 0.5 0.8 1.8 3.0 -55 to +175 Max. Unit Vdc Vdc Vdc mAdc TO-18 (TO-206AA) 2N718A 2N718A 2N1613, L @ TC = +250C (2) 2N718A 2N1613, L Operating & Storag.
