2N7373

Complimentary Power Transistors

Microsemi Corporation

2N7373 Features

* Planar Process for Reliability Fast Switching High-Frequency Power Transistors For Complementary Use with Each Other 15 mj Reverse Energy Rating with IC = 10MA and 4 V Reverse Bias Similar to 2N5004 and 2N5005 but JEDE

2N7373 General Description

These power transistors are produced by PPC's MULTIPLE DIFFUSED PLANAR process. This technology produces high voltage devices with excellent switching speeds, frequency response, gain linearity, saturation voltages, high current gain, and safe operating areas. These devices have excellent unclamped.

2N7373 Datasheet (56.57 KB)

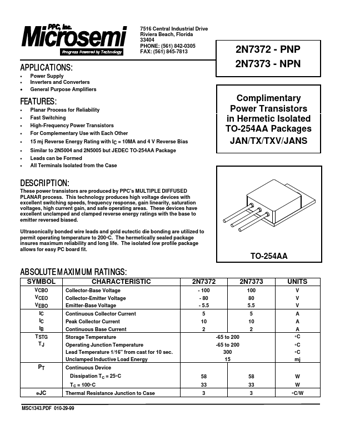

2N7373 Datasheet Preview — Preview of 2N7373 PDF

Datasheet Details

Part number:

2N7373

Manufacturer:

Microsemi ↗ Corporation

File Size:

56.57 KB

Description:

Complimentary power transistors.
7516 Central Industrial Drive Riviera Beach, Florida 33404 PHONE: (561) 842-0305 FAX: (561) 845-7813 APPLICATIONS:

*

* 2N7372 - PNP .
