3PMT85xA

(3PMT5.0A - 3PMT170A) POWERMITE Low Profile 1500 Watt Transient Voltage Suppressor

3PMT85xA Features

* include a full metallic bottom that eliminates the possibility of solder-flux entrapment during assembly. They also provide unique locking tab acting as an integral heat sink. With its very short terminations, parasitic inductance is minimized to reduce voltage overshoots during fast-rise-time trans

3PMT85xA General Description

These 1500 watt transient voltage suppressors offer power-handling capabilities only found in larger packages. They are most often used for protecting against transients from inductive switching environments or induced secondary lightning effects as found in lower surge levels of IEC61000-4-5. With .

3PMT85xA Datasheet (479.52 KB)

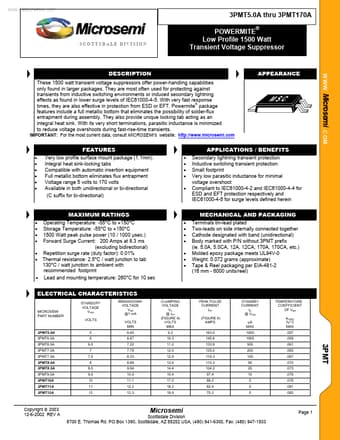

Preview of 3PMT85xA PDF

Datasheet Details

Part number:

3PMT85xA

Manufacturer:

Microsemi ↗ Corporation

File Size:

479.52 KB

Description:

(3pmt5.0a - 3pmt170a) powermite low profile 1500 watt transient voltage suppressor.
