Part number: LMX1622-12-03
Manufacturer: Microsemi (https://www.microsemi.com/) Corporation
File Size: 239.11KB
Download: 📄 Datasheet

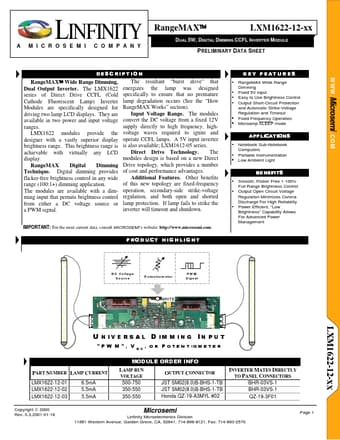

Description: DUAL 5W / DIGITAL DIMMING CCFL INVERTER MODULE
CN1 (Molex 53261-0890) * CN1-1,2 VIN Main Input Power Supply (10.8V to 13.2V) CN1-3,4 GND Power Supply Return SLEEP CN1-5 >1.5V(Backlight on), <0.8V (backlight off), IISLEEP=425uA @ 5.0V, disabled if left open CN1-6 BRITE Brightness Control (0.25- 2..
Other benefits of this new topology are fixed-frequency operation, secondary-side strike-voltage regulation, and both open and shorted lamp protection. If lamp fails to .
