LMX1602 - Low Cost Dual Frequency Synthesizer

National Semiconductor

The LMX1602 by National Semiconductor is a Low Cost Dual Frequency Synthesizer. Below is the official datasheet preview.

📥 Download Datasheet

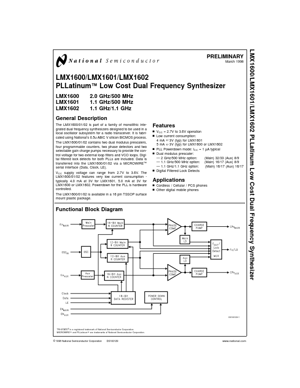

LMX1602 Low Cost Dual Frequency Synthesizer by National Semiconductor - Datasheet Preview — Official preview page of the **LMX1602** Low Cost Dual Frequency Synthesizer datasheet (National Semiconductor).

Datasheet Details

Part number	LMX1602
Manufacturer	National Semiconductor
File Size	196.67 KB
Description	Low Cost Dual Frequency Synthesizer
Datasheet	LMX1602_NationalSemiconductor.pdf
Additional preview pages of the LMX1602 datasheet.

LMX1602 Product details

Description

The LMX1600/01/02 is part of a family of monolithic integrated dual frequency synthesizers designed to be used in a local oscillator subsystem for a radio transceiver.

Features

n VCC = 2.7V to 3.6V operation n Low current consumption: 4 mA @ 3V (typ) for LMX1601 5 mA @ 3V (typ) for LMX1600 or LMX1602 n PLL Powerdown mode: ICC = 1 µA typical n Dual modulus prescaler:.
2 GHz/500 MHz option: (Main) 32/33 (Aux) 8/9.
1.1 GHz/500 MHz option: (Main) 16/17 (Aux) 8/9.
1.1 GHz/1.1 GHz option: (Main) 16/17 (Aux) 16/17 n Digital Filtered Lock Detects General.
