LMX1501A Datasheet, Frequency Synthesizer, National Semiconductor

1.1 ghz frequency synthesizer

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Texas Instruments	LMX1501A	LMX1501AMX	IC PLL FREQ SYNTH 16SOIC	DigiKey	0	2500 units	$2.83	🛒 Buy Now

📥 Download PDF (367.82 KB)

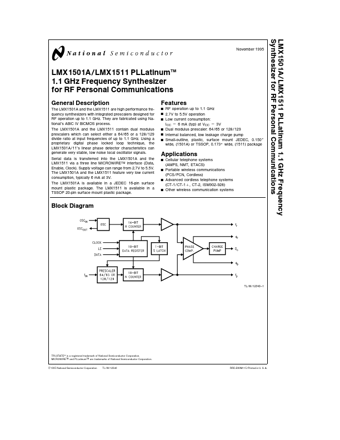

LMX1501A Datasheet Preview Page 1 — Preview of LMX1501A Datasheet

PDF File Details

Part number:

LMX1501A

Manufacturer:

National Semiconductor

File Size:

367.82 KB

Download:

📄 Download the LMX1501A Datasheet PDF

Description:

1.1 ghz frequency synthesizer.
The LMX1501A and the LMX1511 are high performance frequency synthesizers with integrated prescalers designed for RF operation up to 1 1 GHz They are fabricated using National’s ABiC IV BiCMOS process .

✔ LMX1501A Features

Y Y Y Y Y Y RF operation up to 1 1 GHz 2 7V to 5 5V operation Low current consumption ICC e 6 mA (typ) at VCC e 3V Dual modulus prescaler 64 65 or 128 129 Internal bala

✔ LMX1501A Application

Y Y Y Y Cellular telephone systems (AMPS NMT ETACS) Portable wireless communications (PCS PCN Cordless) A
