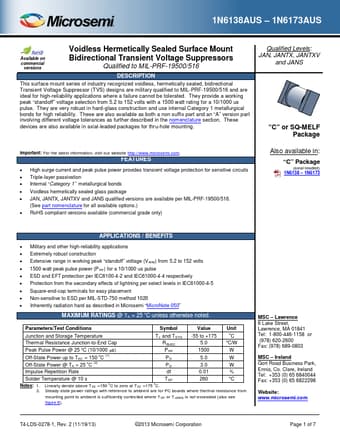

1N6141AUS, 1N6138AUS - Voidless Hermetically Sealed Surface Mount Bidirectional Transient Voltage Suppressors

Microsemi

1N6141AUS Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N6141AUS, 1N6138AUS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	1N6141AUS, 1N6138AUS
Manufacturer	Microsemi ↗
File Size	466.24 KB
Description	Voidless Hermetically Sealed Surface Mount Bidirectional Transient Voltage Suppressors
Datasheet	1N6138AUS-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6141AUS, 1N6138AUS. Please refer to the document for exact specifications by model.

1N6141AUS Product details

Description

This surface mount series of industry recognized voidless, hermetically sealed, bidirectional Transient Voltage Suppressor (TVS) designs are military qualified to MIL-PRF-19500/516 and are ideal for high-reliability applications where a failure cannot be tolerated.

Features

High surge current and peak pulse power provides transient voltage protection for sensitive circuits.
Triple-layer passivation.
Internal “Category 1” metallurgical bonds.
Voidless hermetically sealed glass package.
JAN, JANTX, JANTXV and JANS qualified versions are available per MIL-PRF-19500/516. (See part nomenclature for all available options. ).
RoHS compliant versions available (commercial grade only) Also available in: “C” Package (axi.
