1N6141A Datasheet - Semtech Corporation

1N6141A QPL 1500 Watt Axial Leaded TVS

The 1N61xx series of transient voltage suppressors are designed to protect military and commercial electronic equipment from overvoltages caused by lightning, ESD, EFT, inductive load switching, and EMP. These devices are constructed using two p-n junction TVS diodes in a back-toback configuration, .

1N6141A Features

* 1500 Watts Peak Pulse Power (tp = 10/1000µs) Voidless hermetically sealed glass package Metallurgically bonded High surge capacity Military & Industrial applications Available in JAN, JTX, and JTXV versions per MIL-S-19500/516 MECHANICA

1N6141A_SemtechCorporation.pdf

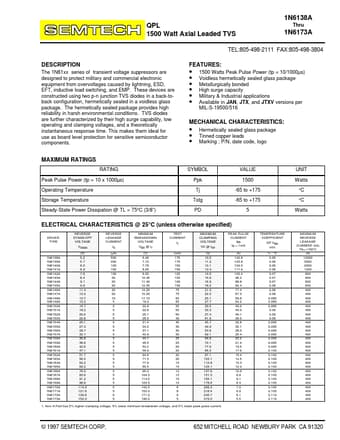

Preview of 1N6141A PDF
1N6141A Datasheet Preview Page 2

Datasheet Details

Part number:

1N6141A

Manufacturer:

Semtech Corporation

File Size:

31.17 KB

Description:

Qpl 1500 watt axial leaded tvs.
