1N6141US, 1N6138US - 1500W Bipolar Transient Voltage Suppressor Surface Mount

Semtech

Datasheet Details

Part number	1N6141US, 1N6138US
Manufacturer	Semtech
File Size	40.33 KB
Description	1500W Bipolar Transient Voltage Suppressor Surface Mount

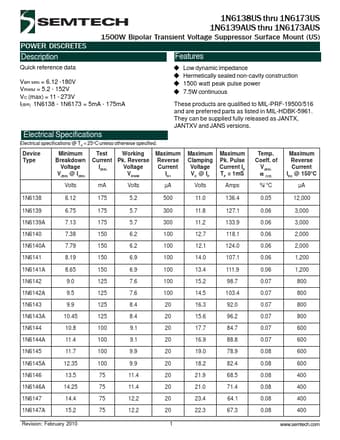

Datasheet	1N6138US-Semtech.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6141US, 1N6138US. Please refer to the document for exact specifications by model.

Quick reference data Low dynamic impedance VBR MIN = 6.12 -180V VRWM = 5.2 - 152V VC (max) = 11 - 273V I(BR) 1N6138 - 1N6173 = 5mA - 175mA Hermetically sealed non-cavity construction 1500 watt peak pulse power 7.5W continuous These products are qualified to MIL-PRF-19500/516 and are preferred parts as listed in MIL-HDBK-5961. They can be supplied fully released as JANTX, JANTXV and JANS versions. Electrical Specifications Electrical specifications @ TA = 25°C unless otherwise specified. D.
