1N6141, 1N6138 - 1500W Bipolar Transient Voltage Suppressors

Semtech

Datasheet Details

Part number	1N6141, 1N6138
Manufacturer	Semtech
File Size	87.14 KB
Description	1500W Bipolar Transient Voltage Suppressors
Datasheet	1N6138-Semtech.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6141, 1N6138. Please refer to the document for exact specifications by model.

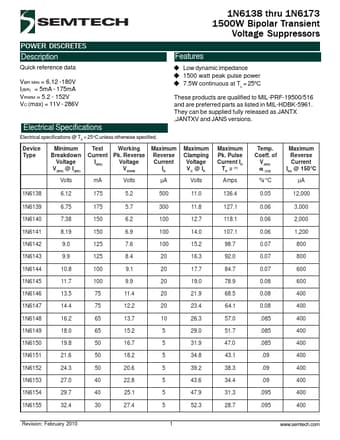

Quick reference data VBR MIN = 6.12 -180V I(BR) = 5mA - 175mA VRWM = 5.2 - 152V VC (max) = 11V - 286V Electrical Specifications Low dynamic impedance 1500 watt peak pulse power 7.5W continuous at TL = 25°C These products are qualified to MIL-PRF-19500/516 and are preferred parts as listed in MIL-HDBK-5961. They can be supplied fully released as JANTX ,JANTXV and JANS versions. Electrical specifications @ TA = 25°C unless otherwise specified. Device Type Minimum Breakdown Voltage V(BR) @ I(B.
