2N3778 - PNP Transistor

Microsemi

Datasheet Details

Part number	2N3778
Manufacturer	Microsemi
File Size	84.21 KB
Description	PNP Transistor
Datasheet	2N3778 Datasheet
Additional preview pages of the 2N3778 datasheet.

📁 Similar Datasheet

2N3771 - High Power NPN Silicon Power Transistors (ON Semiconductor)
2N3771 - HIGH POWER NPN SILICON TRANSISTOR (STMicroelectronics)
2N3771 - HIGH-POWER NPN SILICON TRANSISTORS (Motorola)
2N3771 - NPN High Power Silicon Transistor (VPT)
2N3771 - NPN HIGH POWER SILICON TRANSISTOR (Microsemi Corporation)
2N3771 - NPN Transistor (INCHANGE)
2N3771 - Silicon NPN Transistor (NTE)
2N3771 - Silicon NPN Power Transistors (SavantIC)
2N3771 - NPN POWER TRANSISTOR (Central Semiconductor)
2N3772 - HIGH POWER NPN SILICON TRANSISTOR (STMicroelectronics)

Other Datasheets by Microsemi

2N3777 - PNP Transistor
2N3700S - LOW POWER NPN SILICON TRANSISTOR
2N3735 - NPN SILICON SWITCHING TRANSISTOR
2N3735L - NPN SILICON SWITCHING TRANSISTOR
2N3737 - NPN SILICON SWITCHING TRANSISTOR
2N3737UB - NPN SILICON SWITCHING TRANSISTOR
2N3762 - PNP SWITCHING SILICON TRANSISTOR
2N3762L - PNP SWITCHING SILICON TRANSISTOR

Full PDF Text Transcription

Click to expand full text

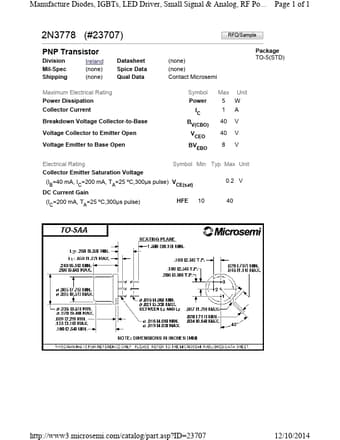

Manufacture Diodes, IGBTs, LED Driver, Small Signal & Analog, RF Po... Page 1 of 1 2N3778 (#23707) PNP Transistor Division Ireland Mil-Spec (none) Shipping (none) Datasheet Spice Data Qual Data RFQ/Sample (none) (none) Contact Microsemi Package TO-5(STD) Maximum Electrical Rating Power Dissipation Collector Current Breakdown Voltage Collector-to-Base Voltage Collector to Emitter Open Voltage Emitter to Base Open Symbol Power IC BV(CBO) VCEO BVEBO Max Unit 5W 1A 40 V 40 V 8V Electrical Rating Symbol Min Collector Emitter Saturation Voltage (IB=40 mA, IC=200 mA, TA=25 ºC,300µs pulse) VCE(sat) DC Current Gain (IC=200 mA, TA=25 ºC,300µs pulse) HFE 10 Typ Max Unit 0.2 V 40 http://www3.microsemi.com/catalog/part.

Published: May 23, 2017 |
