2N3771 - High Power NPN Silicon Power Transistors

Datasheet Summary

Features

Forward Biased Second Breakdown Current Capability IS/b = 3.75 Adc @ VCE = 40 Vdc.
2N3771 = 2.5 Adc @ VCE = 60 Vdc.
2N3772.
These Devices are Pb.
Free and are RoHS Compliant.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	2N3771
Manufacturer	ON Semiconductor
File Size	239.73 KB
Description	High Power NPN Silicon Power Transistors
Datasheet	2N3771 Datasheet
Additional preview pages of the 2N3771 datasheet.

📁 Similar Datasheet

2N3771 - HIGH POWER NPN SILICON TRANSISTOR (STMicroelectronics)
2N3771 - HIGH-POWER NPN SILICON TRANSISTORS (Motorola)
2N3771 - NPN High Power Silicon Transistor (VPT)
2N3771 - NPN HIGH POWER SILICON TRANSISTOR (Microsemi Corporation)
2N3771 - NPN Transistor (INCHANGE)
2N3771 - Silicon NPN Transistor (NTE)
2N3771 - Silicon NPN Power Transistors (SavantIC)
2N3771 - NPN POWER TRANSISTOR (Central Semiconductor)
2N3772 - HIGH POWER NPN SILICON TRANSISTOR (STMicroelectronics)
2N3772 - HIGH-POWER NPN SILICON TRANSISTORS (Motorola)

Other Datasheets by ON Semiconductor

2N3772 - High Power NPN Silicon Power Transistors
2N3773 - NPN Power Transistors
2N3700 - Low Power Transistor
2N3019 - Low Power Transistor
2N3019S - Low Power Transistor
2N3055 - Complementary Silicon Power Transistors
2N3055A - Complementary Silicon High-Power Transistor
2N3055AG - Complementary Silicon High-Power Transistors

Full PDF Text Transcription

Click to expand full text

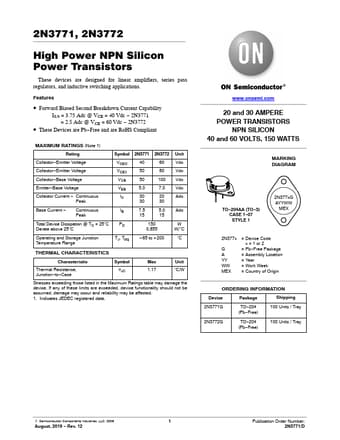

2N3771, 2N3772 High Power NPN Silicon Power Transistors These devices are designed for linear amplifiers, series pass regulators, and inductive switching applications. Features • Forward Biased Second Breakdown Current Capability IS/b = 3.75 Adc @ VCE = 40 Vdc − 2N3771 = 2.5 Adc @ VCE = 60 Vdc − 2N3772 • These Devices are Pb−Free and are RoHS Compliant MAXIMUM RATINGS (Note 1) Rating Collector−Emitter Voltage Collector−Emitter Voltage Collector−Base Voltage Emitter−Base Voltage Collector Current − Continuous Peak Symbol 2N3771 VCEO 40 VCEX 50 VCB 50 VEB 5.0 IC 30 30 2N3772 60 80 100 7.0 20 30 Unit Vdc Vdc Vdc Vdc Adc Base Current − Continuous Peak IB 7.5 5.0 Adc 15 15 Total Device Dissipation @ TC = 25°C PD Derate above 25°C 150 0.
