2N3772J - NPN Transistor

Datasheet Summary

Description

J:High DC Current Gain-hFE:100-150@IC = 10A Low Saturation Voltage- : VCE(sat)= 1.4V(Max)@ IC = 10A

and reliable operation.

Designed for linear amplifiers, series pass regulators, and inductive switching ap

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	2N3772J
Manufacturer	INCHANGE
File Size	200.32 KB
Description	NPN Transistor
Datasheet	2N3772J Datasheet
Additional preview pages of the 2N3772J datasheet.

📁 Similar Datasheet

2N3772 - HIGH POWER NPN SILICON TRANSISTOR (STMicroelectronics)
2N3772 - High Power NPN Silicon Power Transistors (ON Semiconductor)
2N3772 - HIGH-POWER NPN SILICON TRANSISTORS (Motorola)
2N3772 - NPN High Power Silicon Transistor (VPT)
2N3772 - SILICON NPN TRANSISTOR (UTC)
2N3772 - NPN SILICON PLANAR POWER TRANSISTOR (TRANSYS Electronics Limited)
2N3772 - NPN HIGH POWER SILICON TRANSISTOR (Microsemi Corporation)
2N3772 - Silicon NPN Transistor (NTE)
2N3772 - Silicon NPN Power Transistors (SavantIC)
2N3772 - High power NPN silicon power transistors (Multicomp)

Other Datasheets by INCHANGE

2N3772 - NPN Transistor
2N3771 - NPN Transistor
2N3740A - Silicon PNP Power Transistor
2N3741A - Silicon PNP Power Transistor
2N3792 - PNP Transistor
2N3055 - NPN Transistor
2N3055B - NPN Transistor
2N3171H - PNP Transistor

Full PDF Text Transcription

Click to expand full text

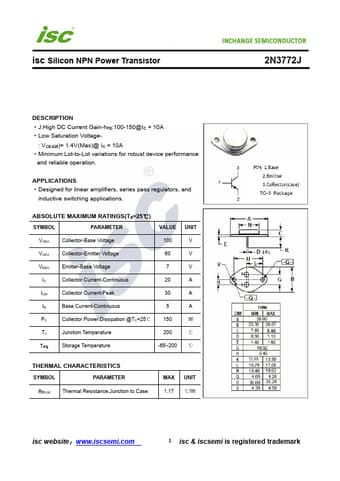

isc Silicon NPN Power Transistor 2N3772J DESCRIPTION ·J:High DC Current Gain-hFE:100-150@IC = 10A ·Low Saturation Voltage- : VCE(sat)= 1.4V(Max)@ IC = 10A ·Minimum Lot-to-Lot variations for robust device performance and reliable operation. APPLICATIONS ·Designed for linear amplifiers, series pass regulators, and inductive switching applications.
