APTM100A23STG Datasheet, Module, Microsemi

APTM100A23STG Features

  • Module
  • Power MOS 7® MOSFETs - Low RDSon - Low input and Miller capacitance - Low gate charge - Avalanche energy rated - Very rugged
  • Kelvin source for easy drive
  • V

PDF File Details

Part number:

APTM100A23STG

Manufacturer:

Microsemi ↗

File Size:

283.29kb

Download:

📄 Datasheet

Description:

Mosfet power module.

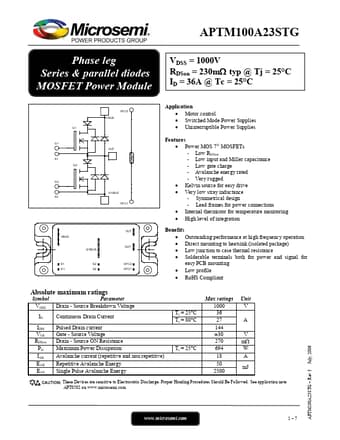

Datasheet Preview: APTM100A23STG 📥 Download PDF (283.29kb)
