M15KP110A

Transient Voltage Suppressor Protection Device

Microsemi

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Microchip Technology Inc	M15KP110A	TVS DIODE 110VWM 178VC DO204AR	DigiKey	0	100 units	$21.87	🛒 Buy Now

M15KP110A Datasheet (387.14 KB)

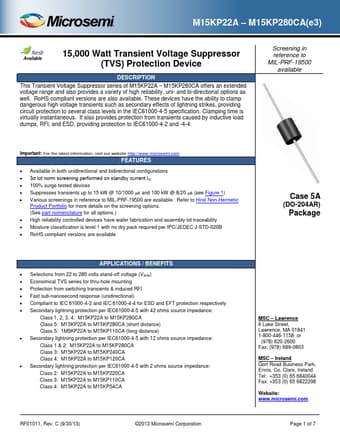

M15KP110A Datasheet Preview — Preview of M15KP110A PDF

Datasheet Details

Part number:

M15KP110A

Manufacturer:

Microsemi ↗

File Size:

387.14 KB

Description:

Transient voltage suppressor protection device.

M15KP110A Features

* Available in both unidirectional and bidirectional configurations

* 3σ lot norm screening performed on standby current ID

* 100% surge tested devices

* Suppresses transients up to 15 kW @ 10/1000 µs and 100 kW @ 8/20 µs (see Figure 1)

* Various screenings in

M15KP110A General Description

This Transient Voltage Suppressor series of M15KP22A

* M15KP280CA offers an extended voltage range and also provides a variety of high reliability, uni- and bi-directional options as well. RoHS compliant versions are also available. These devices have the ability to clamp dangerous high volt.
