M15KP150A, M15KP22A Transient Voltage Suppressor Protection Device

M15KP150A Description

M15KP22A * M15KP280CA(e3) Available 15,000 Watt Transient Voltage Suppressor (TVS) Protection Device .
This Transient Voltage Suppressor series of M15KP22A. M15KP280CA offers an extended voltage range and also provides a variety of high reliabi.

M15KP150A Features

* Available in both unidirectional and bidirectional configurations
* 3σ lot norm screening performed on standby current ID
* 100% surge tested devices
* Suppresses transients up to 15 kW @ 10/1000 µs and 100 kW @ 8/20 µs (see Figure 1)
* Various screenings in

M15KP150A Applications

* / BENEFITS
* Selections from 22 to 280 volts stand-off voltage (VWM)
* Economical TVS series for thru-hole mounting
* Protection from switching transients & induced RFI
* Fast sub-nanosecond response (unidirectional)
* Compliant to IEC 61000-4-2 and IEC 61000-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M15KP150A, M15KP22A. Please refer to the document for exact specifications by model.

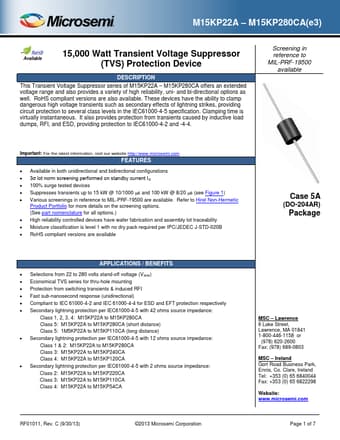

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M15KP150A, M15KP22A
Manufacturer
Microsemi ↗
File Size
387.14 KB
Datasheet
M15KP22A-Microsemi.pdf
Description
Transient Voltage Suppressor Protection Device
Note
This datasheet PDF includes multiple part numbers: M15KP150A, M15KP22A.
Please refer to the document for exact specifications by model.
