MSR2N2222AUBC, MSR2N2222AUB Datasheet - Microsemi

MSR2N2222AUBC Rad Hard NPN Silicon Switching Transistor

This RHA level high speed switching NPN transistor, 2N2222A in a UB or UBC ceramic package, is ideal to drive many high-reliability applications. This device is constructed and screened to a JANSR performance level with radiation test method 1019 wafer lot acceptance conducted on all die lots. Full.

MSR2N2222AUBC Features

* JEDEC registered 2N2222A

* TID level screened per MIL-PRF-19500

* Also available with ELDRS testing to 0.01 Rad(s)/ sec

* MKCR/MHCR chip die available

* RHA (Radiation hardness assured) lot by lot validation testing via ELDR 0.1 Rad (SI)/sec dose rate Screened Levels: MSR UB &

MSR2N2222AUB-Microsemi.pdf

This datasheet PDF includes multiple part numbers: MSR2N2222AUBC, MSR2N2222AUB. Please refer to the document for exact specifications by model.

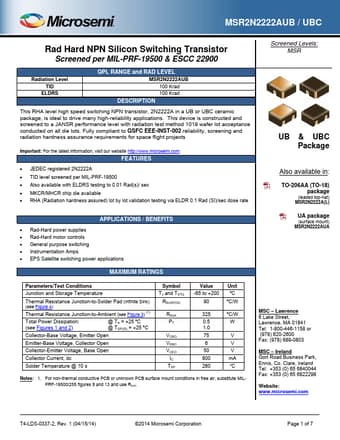

MSR2N2222AUBC Datasheet Preview Page 2 MSR2N2222AUBC Datasheet Preview Page 3

Datasheet Details

Part number:

MSR2N2222AUBC, MSR2N2222AUB

Manufacturer:

Microsemi ↗

File Size:

776.39 KB

Description:

Rad hard npn silicon switching transistor.

Note:

This datasheet PDF includes multiple part numbers: MSR2N2222AUBC, MSR2N2222AUB.
Please refer to the document for exact specifications by model.
