MSR2N2369AUBC, MSR2N2369AUB Rad Hard NPN Silicon High Speed Switching Transistor

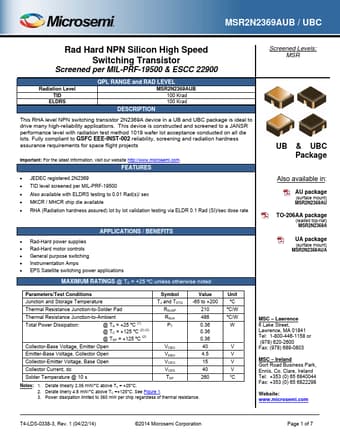

📥 Download Datasheet  Datasheet Preview Page 1

Description

  MSR2N2369AUB / UBC   Rad Hard NPN Silicon High Speed Switching Transistor Screened per MIL-PRF-19500 & ESCC 22900 Screened Levels: MSR Radiation .
This RHA level NPN switching transistor 2N2369A device in a UB and UBC package is ideal to drive many high-reliability applications.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSR2N2369AUBC, MSR2N2369AUB. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MSR2N2369AUBC, MSR2N2369AUB
Manufacturer
Microsemi ↗
File Size
517.37 KB
Datasheet
MSR2N2369AUB-Microsemi.pdf
Description
Rad Hard NPN Silicon High Speed Switching Transistor
Note
This datasheet PDF includes multiple part numbers: MSR2N2369AUBC, MSR2N2369AUB.
Please refer to the document for exact specifications by model.

Features

* JEDEC registered 2N2369
* TID level screened per MIL-PRF-19500
* Also available with ELDRS testing to 0.01 Rad(s)/ sec
* MKCR / MHCR chip die available
* RHA (Radiation hardness assured) lot by lot validation testing via ELDR 0.1 Rad (SI)/sec d

Applications

* This device is constructed and screened to a JANSR performance level with radiation test method 1019 wafer lot acceptance conducted on all die lots. Fully compliant to GSFC EEE-INST-002 reliability, screening and radiation hardness assurance requirements for space flight projects Important: For th
