MSR2N2907AUBC, MSR2N2907AUB Rad Hard PNP Silicon Switching Transistor

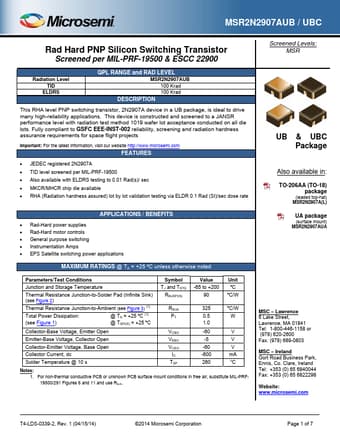

📥 Download Datasheet  Datasheet Preview Page 1

Description

MSR2N2907AUB / UBC Rad Hard PNP Silicon Switching Transistor Screened per MIL-PRF-19500 & ESCC 22900 Radiation Level TID ELDRS QPL RANGE and RAD LE.
This RHA level PNP switching transistor, 2N2907A device in a UB package, is ideal to drive many high-reliability applications.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSR2N2907AUBC, MSR2N2907AUB. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MSR2N2907AUBC, MSR2N2907AUB
Manufacturer
Microsemi ↗
File Size
434.67 KB
Datasheet
MSR2N2907AUB-Microsemi.pdf
Description
Rad Hard PNP Silicon Switching Transistor
Note
This datasheet PDF includes multiple part numbers: MSR2N2907AUBC, MSR2N2907AUB.
Please refer to the document for exact specifications by model.

Features

* JEDEC registered 2N2907A
* TID level screened per MIL-PRF-19500
* Also available with ELDRS testing to 0.01 Rad(s)/ sec
* MKCR/MHCR chip die available

Applications

* This device is constructed and screened to a JANSR performance level with radiation test method 1019 wafer lot acceptance conducted on all die lots. Fully compliant to GSFC EEE-INST-002 reliability, screening and radiation hardness assurance requirements for space flight projects Important: For th
