MSR2N2369AUB

Rad Hard NPN Silicon High Speed Switching Transistor

MSR2N2369AUB Features

* JEDEC registered 2N2369

* TID level screened per MIL-PRF-19500

* Also available with ELDRS testing to 0.01 Rad(s)/ sec

* MKCR / MHCR chip die available

* RHA (Radiation hardness assured) lot by lot validation testing via ELDR 0.1 Rad (SI)/sec d

MSR2N2369AUB General Description

This RHA level NPN switching transistor 2N2369A device in a UB and UBC package is ideal to drive many high-reliability applications. This device is constructed and screened to a JANSR performance level with radiation test method 1019 wafer lot acceptance conducted on all die lots. Fully compliant t.

MSR2N2369AUB Datasheet (517.37 KB)

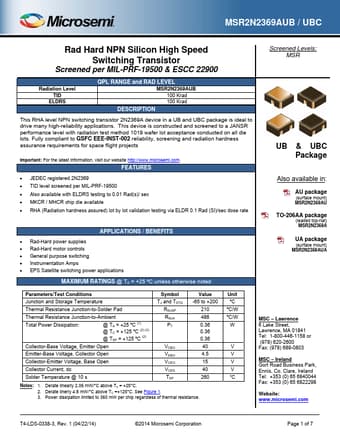

Preview of MSR2N2369AUB PDF

Datasheet Details

Part number:

MSR2N2369AUB

Manufacturer:

Microsemi ↗

File Size:

517.37 KB

Description:

Rad hard npn silicon high speed switching transistor.
  MSR2N2369AUB / UBC   Rad Hard NPN Silicon High Speed Switching Transistor Screened per MIL-PRF-19500 & ESCC 22900 Screened Levels: MSR Radiation .
