AS5181 - DAC

AS5181 Description

10 Bit, 40MHz Current -Output DACs .
The AS5181 is a 10-bit, current-output digital-to-analog converter (DAC) designed for superior performance in signal reconstruction or arbitrary wavef.

AS5181 Features

* +2.7V to +3.3V Single-Supply Operation
* Wide Spurious-Free Dynamic Range: 70dB at
* FfOuUllTy=D2i. f2feMreHnztial Output
* Low-Current Standby or Full Shutdown Modes
* Internal +1.2V, Low-Noise Bandgap Reference
* Small 24-Pin Flat-pack Package OPTI

AS5181 Applications

* requiring analog signal reconstruction with low distortion and low-power operation. The AS5181 are designed for a 10pVs glitch operation to minimize unwanted spurious signal compo

📥 Download Datasheet

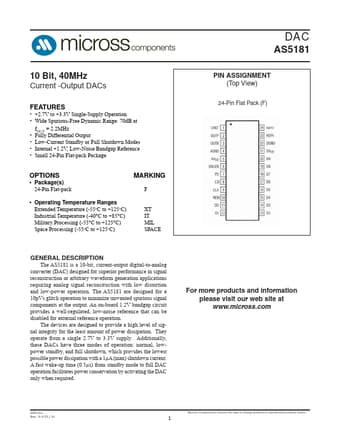

Preview of AS5181 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS5181
Manufacturer
Micross Components
File Size
952.74 KB
Datasheet
AS5181-MicrossComponents.pdf
Description
DAC
