CMA-162LN Datasheet - Mini-Circuits

CMA-162LN Monolithic Amplifier

The CMA-162LN+ amplifier is fabricated using E-PHEMT technology and offers extremely high dynamic range with ultra low noise figure and good input and output return loss. Terminal finish is Ni-Pd-Au and it has repeatable performance from lot to lot due to fully automated, tightly controlled semicond.
MonolithicUltra Low Noise, High IPA3 mplifier 50Ω 0.7 to 1.6 GHz The Big Deal Ceramic, Hermetically Sealed, Nitrogen filled Low profile case, .045” high Ultra Low Noise Figure, 0.5 dB High Gain, High IP3 Class 1B HBM ESD (500V) CMA-162LN+ CASE STYLE: DL1721 Product Overview Mini-Circuits CMA-162LN+ is a E-PHEMT based Ultra-Low Noise MMIC Amplifier with a unique combinations of low noise and high IP3 making this amplifier ideal for sensitiv.

CMA-162LN Features

* Feature Ultra Low Noise, 0.5 dB at 1.0 GHz High IP3, +30 dBm at 1.0 GHz Adjustable Gain Ceramic Hermetic Package Max Input Power, +25 dBm High Reliability Class 1B ESD (500V HBM) Advantages Outstanding world class noise figure performance. Combining Low Noise and High IP3 makes this MMIC amplifier

CMA-162LN Datasheet (428.30 KB)

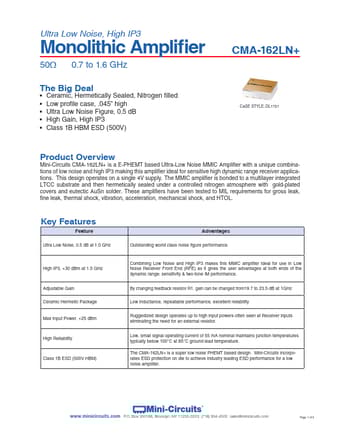

Preview of CMA-162LN PDF

Datasheet Details

Part number:

CMA-162LN

Manufacturer:

Mini-Circuits

File Size:

428.30 KB

Description:

Monolithic amplifier.
