CMA-545G1 Datasheet, Amplifier, Mini-Circuits

CMA-545G1 Features

  • Amplifier Feature High Gain 25-32 dB Ultra Low Noise: 0.8 dB NF at 0.9 GHz High IP3: +36 dBm IP3 at 0.9 GHz Output Power: +22 dBm at 0.9 GHz Internally Matched Ceramic Hermetic Package Ma

PDF File Details

Part number:

CMA-545G1

Manufacturer:

Mini-Circuits

File Size:

366.84kb

Download:

📄 Datasheet

Description:

Monolithic amplifier. CMA-545G1+ is a high dynamic range, low noise, high IP3, high output power, monolithic amplifier. Manufactured using E-PHEMT

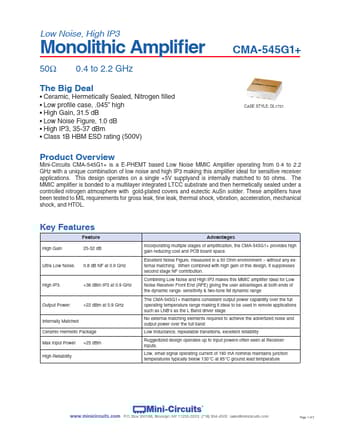

  • Datasheet Preview: CMA-545G1 📥 Download PDF (366.84kb)
    Page 2 of CMA-545G1 Page 3 of CMA-545G1

    CMA-545G1 Application

    • Applications This design operates on a single +5V supplyand is internally matched to 50 ohms. The MMIC amplifier is bonded to a multilayer integrat
