CMA-252LN, CMA-252LN-Mini, Monolithic Amplifier

MonolithicUltra Low Noise, High IPA3 mplifier 50Ω 1.5 to 2.5 GHz The Big Deal CMA-252LN+ CASE STYLE: DL1721 Product Overview Mini-Circuits CMA-252LN.
The CMA-252LN+ amplifier is fabricated using E-PHEMT technology and offers extremely high dynamic range with ultra low noise figure and good input and.

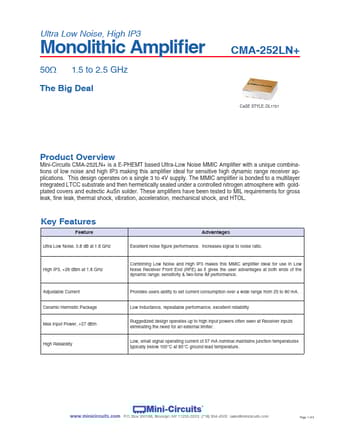

datasheet Preview Page 1 from Datasheet4u.com

CMA-252LN-Mini-Circuits.pdf

CMA-252LN Datasheet Preview — This datasheet PDF includes multiple part numbers: CMA-252LN, CMA-252LN-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CMA-252LN, CMA-252LN-Mini

Manufacturer:

Mini-Circuits

File Size:

444.85 KB

Description:

Monolithic Amplifier

Note:

This datasheet PDF includes multiple part numbers: CMA-252LN, CMA-252LN-Mini.
Please refer to the document for exact specifications by model.

Features

* Feature Ultra Low Noise, 0.8 dB at 1.8 GHz High IP3, +29 dBm at 1.8 GHz Adjustable Current Ceramic Hermetic Package Max Input Power, +27 dBm High Reliability Advantages Excellent noise figure performance. Increases signal to noise ratio. Combining Low Noise and High IP3 makes this MMIC amplifier id

Applications

* This design operates on a single 3 to 4V supply. The MMIC amplifier is bonded to a multilayer integrated LTCC substrate and then hermetically sealed under a controlled nitrogen atmosphere with goldplated covers and eutectic AuSn solder. These amplifiers have been tested to MIL requirements for gros
