CMA-545 Datasheet, Amplifier, Mini-Circuits

CMA-545 Features

  • Amplifier Feature Ultra Low Noise: 0.8 dB NF at 1GHz Advantages Industry Leading Noise Figure, measured in a 50 Ohm environment
      – without any external matching. High IP3: Comb

PDF File Details

Part number:

CMA-545

Manufacturer:

Mini-Circuits

File Size:

315.18kb

Download:

📄 Datasheet

Description:

Monolithic amplifier. CMA-545+ is a high dynamic range, low noise, high IP3, high output power, monolithic amplifier. Manufactured using E-PHEMT

  • t

  • Datasheet Preview: CMA-545 📥 Download PDF (315.18kb)

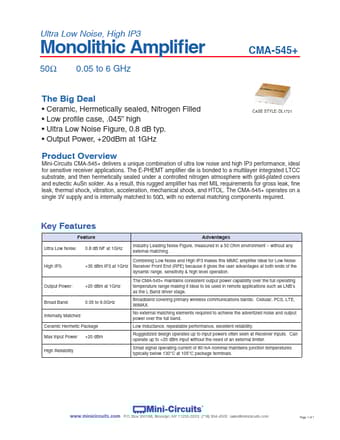

    Page 2 of CMA-545 Page 3 of CMA-545

    CMA-545 Application

    • Applications The E-PHEMT amplifier die is bonded to a multilayer integrated LTCC substrate, and then hermetically sealed under a controlled nitroge
