GALI-3+, GALI-3+-Mini - Monolithic Amplifier

GALI-3+ Description

Surface Mount Monolithic Amplifier DC-3 GHz Product .
Gali 3+ (RoHS compliant) is a wideband amplifier offering high dynamic range.

GALI-3+ Features

* InGaP HBT microwave amplifier
* Miniature SOT-89 package
* Internally Matched to 50 Ohms
* Frequency range, DC to 3 GHz
* Output power, 12.5 dBm typ.
* Excellent package for heat dissipation, exposed metal bottom
* Low thermal resistance for

GALI-3+ Applications

* Cellular
* PCS
* Communication receivers & transmitters Generic photo used for illustration purposes only Gali 3+ CASE STYLE: DF782 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualifications General Descri

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GALI-3+, GALI-3+-Mini. Please refer to the document for exact specifications by model.

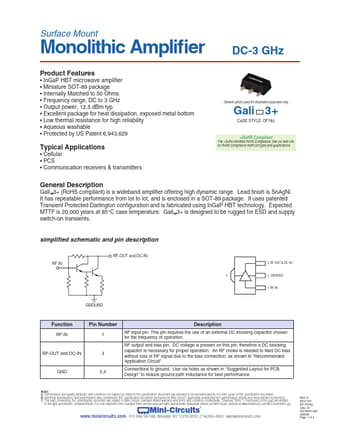

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GALI-3+, GALI-3+-Mini
Manufacturer
Mini-Circuits
File Size
211.07 KB
Datasheet
GALI-3+-Mini-Circuits.pdf
Description
Monolithic Amplifier
Note
This datasheet PDF includes multiple part numbers: GALI-3+, GALI-3+-Mini.
Please refer to the document for exact specifications by model.
