Gali-33+, Gali-33+-Mini - Monolithic Amplifier

Gali-33+ Description

Surface Mount Monolithic Amplifier DC-4 GHz .
Gali 33+ (RoHS compliant) is a wideband amplifier offering high dynamic range.

Gali-33+ Features

* InGaP HBT microwave amplifier
* Miniature SOT-89 package
* Internally Matched to 50 Ohms
* Frequency range, DC to 4 GHz
* Output power, 13.4 dBm typ.
* Excellent package for heat dissipation, exposed metal bottom
* Low thermal resistance for

Gali-33+ Applications

* Cellular
* PCS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: Gali-33+, Gali-33+-Mini. Please refer to the document for exact specifications by model.

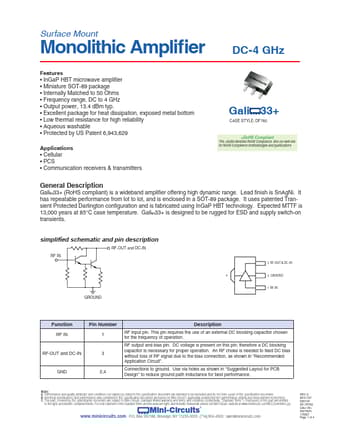

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Gali-33+, Gali-33+-Mini
Manufacturer
Mini-Circuits
File Size
192.67 KB
Datasheet
Gali-33+-Mini-Circuits.pdf
Description
Monolithic Amplifier
Note
This datasheet PDF includes multiple part numbers: Gali-33+, Gali-33+-Mini.
Please refer to the document for exact specifications by model.
