GALI-39+ Datasheet, Amplifier, Mini-Circuits

GALI-39+ Features

• Amplifier
• Miniature SOT-89 Package
• Frequency range, DC to 7 GHz
• Internally Matched to 50 Ohms
• Output power, 10.5 dBm typ.
• Excellent package for h

PDF File Details

Part number:

GALI-39+

Manufacturer:

Mini-Circuits

File Size:

244.60kb

Download:

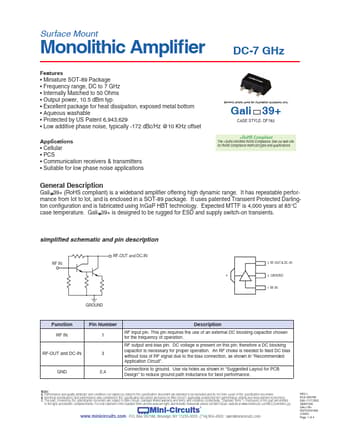

📄 Datasheet

Description:

Monolithic amplifier. Gali 39+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot, and is

GALI-39+ Application

• Applications
• Cellular
• PCS
• Communication receivers & transmitters
• Suitable for low phase noise applications
