LFCN-1500, LFCN-1500_Mini, Low Pass Filter

Ceramic Low Pass Filter DC to 1500 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input * -55°C to 100°C -55°C to 100°C 10.

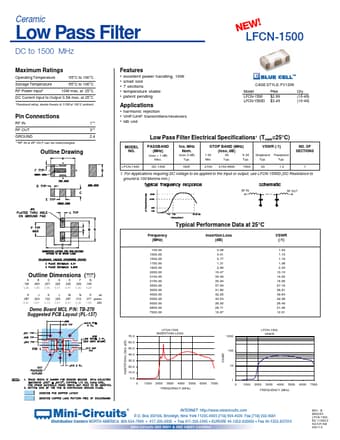

datasheet Preview Page 1 from Datasheet4u.com

LFCN-1500_Mini-Circuits.pdf

LFCN-1500 Datasheet Preview — This datasheet PDF includes multiple part numbers: LFCN-1500, LFCN-1500_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LFCN-1500, LFCN-1500_Mini

Manufacturer:

Mini-Circuits

File Size:

138.66 KB

Description:

Low Pass Filter

Note:

This datasheet PDF includes multiple part numbers: LFCN-1500, LFCN-1500_Mini.
Please refer to the document for exact specifications by model.

Features

* excellent power handling, 10W small size 7 sections temperature stable patent pending CASE STYLE: FV1206 Model LFCN-1500 LFCN-1500D Price $2.99 $3.49 Qty. (10-49) (10-49) DC Current Input to Output 0.5A max. at 25°C
* Passband rating, derate line

Applications

* harmonic rejection
* VHF/UHF transmitters/receivers
* lab use Pin Connections RF IN RF OUT GROUND
* RF IN & RF OUT can be interchanged 1
* 3
* 2,4 Low Pass Filter Electrical Specifications1 (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. L
