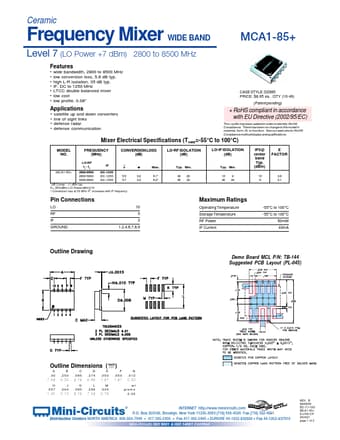

MCA1-85, MCA1-85_Mini - Frequency Mixer

MCA1-85 Description

Ceramic Frequency Mixer WIDE BAND Level 7 (LO Power +7 dBm) .

MCA1-85 Features

* wide bandwidth, 2800 to 8500 MHz low conversion loss, 5.6 dB typ. high L-R isolation, 35 dB typ. IF, DC to 1250 MHz LTCC double balanced mixer low cost low profile, 0.08" satellite up and do

MCA1-85 Applications

* + RoHS compliant in accordance with EU Directive (2002/95/EC) The +suffix has been added in order to identify RoHS Compliance. There has been no change to the model's material, form, fit, or function. See our web site for RoHS Compliance methodologies and qualifications. Mixer Electrical Specifica

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MCA1-85, MCA1-85_Mini. Please refer to the document for exact specifications by model.
