PHA-23LN+, PHA-23LN+-Mini Monolithic Amplifier

PHA-23LN+ Description

ULTRA HIGH DYNAMIC RANGE Monolithic Amplifier 50Ω 30 MHz to 2 GHz THE BIG DEAL y Ultra-High IP3, +37.4 dBm typ.at 1 GHz y Low supply voltage, +3 to +.
RF-IN RF-OUT and DC-IN 4 GND 3 RF-OUT & DC-IN 2 GROUND 1 RF-IN Function RF IN RF-OUT and DC-IN GND Pin Number 1 3 2,4 Description RF Input RF O.

PHA-23LN+ Features

* Feature Advantages Broad Band: 30 MHz to 2 GHz Broadband covering primary wireless communications bands: VHF, UHF, Cellular Extremely High IP3 +40.9 dBm typical at 30 MHz +37.4 dBm typical at 1 GHz The PHA-23LN+ matches industry leading IP3 performance relative to device size and power consumpti

PHA-23LN+ Applications

* y Base station infrastructure y CATV y Cellular PRODUCT OVERVIEW PHA-23LN+ (RoHS compliant) is an advanced wideband amplifier fabricated using E-PHEMT technology and offers extremely high dynamic range over a broad frequency range and with low noise figure. In addition, the PHA-23LN+ has good input

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PHA-23LN+, PHA-23LN+-Mini. Please refer to the document for exact specifications by model.

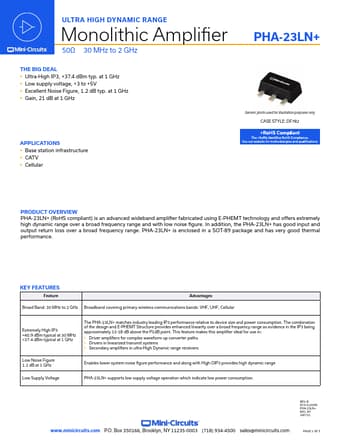

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PHA-23LN+, PHA-23LN+-Mini
Manufacturer
Mini-Circuits
File Size
459.59 KB
Datasheet
PHA-23LN+-Mini-Circuits.pdf
Description
Monolithic Amplifier
Note
This datasheet PDF includes multiple part numbers: PHA-23LN+, PHA-23LN+-Mini.
Please refer to the document for exact specifications by model.
