RAM-6+

Monolithic Amplifier

RAM-6+ Features

* Wideband, DC to 2 GHz

* Cascadable ceramic package

* Internally Matched to 50 Ohms

* Low noise figure, 2.8 dB typ.

* Excellent repeatability

* Aqueous washable Typical Applications

* Cellular

* UHF/VHF

* Communication system

RAM-6+ General Description

RAM-6+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot. It is enclosed in a ceramic surface-mount package. RAM-6+ uses Darlington configuration and is fabricated using silicon technology. Expected MTBF is 4000 years at 100°C case te.

RAM-6+ Datasheet (224.97 KB)

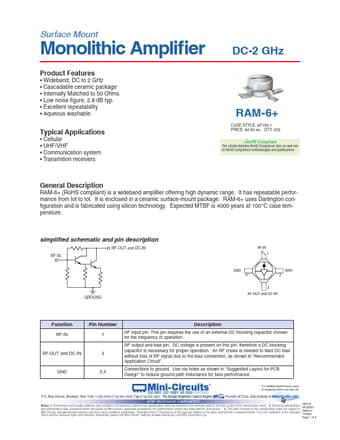

Preview of RAM-6+ PDF

Datasheet Details

Part number:

RAM-6+

Manufacturer:

Mini-Circuits

File Size:

224.97 KB

Description:

Monolithic amplifier.
