RAM1B, RAM1A Datasheet - ETC

RAM1B - SOLID STATE RELAYS INDUSTRIAL

The industrial, 1-phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities.

The relay can be used for resistive, inductive and capacitive loads.

The zero switching relay switches ON when the sinusoidal curve crosses zero and

Solid State Relays Industrial, 1-Phase ZS (IO) w.

LED Types RAM1A, RAM1B Zero switching (RAM1A) or instant-on switching (RAM1B) AC Solid State Relay Direct copper bonding (DCB) technology LED indication Clip-on IP 20 protection cover Self-lifting terminals Housing free of moulding mass 2 input ranges: 3-32 and 20-280 VAC/22-48VDC Operational ratings: Up to 125AACrms and 600VACrms Blocking voltage: Up

RAM1B Features

* ies datasheets. Specifications are subject to change without notice (28.02.2007) 5

RAM1A_ETC.pdf

This datasheet PDF includes multiple part numbers: RAM1B, RAM1A. Please refer to the document for exact specifications by model.

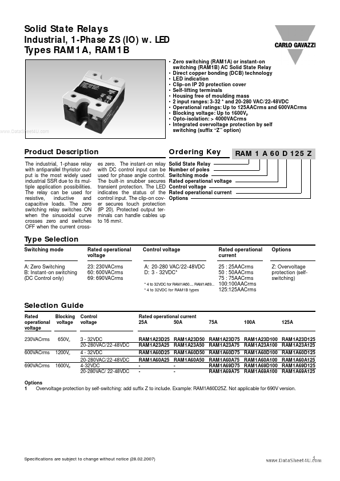

RAM1B Datasheet Preview Page 2 RAM1B Datasheet Preview Page 3

Datasheet Details

Part number:

RAM1B, RAM1A

Manufacturer:

ETC

File Size:

140.13 KB

Description:

Solid state relays industrial.

Note:

This datasheet PDF includes multiple part numbers: RAM1B, RAM1A.
Please refer to the document for exact specifications by model.
