RAM-8A Monolithic Amplifier

RAM-8A+ (RoHS compliant) is a wideband amplifier offering high dynamic range. It has repeatable performance from lot to lot. It is enclosed in a ceramic surface-mount package. RAM-8A+ uses Darlington configuration and is fabricated using silicon technology. simplified schematic and pin description .

RAM-8A Features

* Exact footprint compatible for RAM-8+ Benefits:

* lower device voltage, 3.7V typ.

* lower power dissipation in the MMIC

* may eliminate need for RFC

* Wideband, DC to 1 GHz

* Cascadable ceramic package

* Internally Matched to 50 Ohms

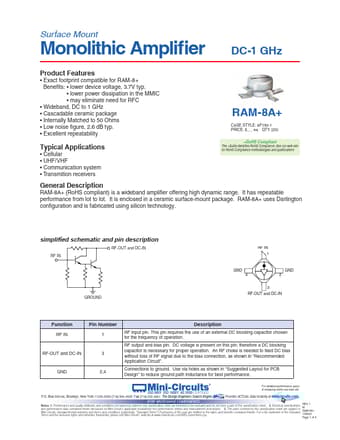

RAM-8A-Mini-Circuits.pdf

RAM-8A Datasheet Preview — This datasheet PDF includes multiple part numbers: RAM-8A, RAM-8A-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RAM-8A, RAM-8A-Mini

Manufacturer:

Mini-Circuits

File Size:

155.01 KB

Description:

Monolithic amplifier.

Note:

This datasheet PDF includes multiple part numbers: RAM-8A, RAM-8A-Mini.
Please refer to the document for exact specifications by model.
