RAM-7+, RAM-7+-Mini - Monolithic Amplifier

RAM-7+ Description

Surface Mount Monolithic Amplifier DC-2 GHz Product .
RAM-7+ (RoHS compliant) is a wideband amplifier offering high dynamic range.

RAM-7+ Features

* Wideband, DC to 2 GHz
* Cascadable ceramic package
* Internally Matched to 50 Ohms
* Excellent repeatability
* Aqueous washable

RAM-7+ Applications

* Cellular
* UHF/VHF
* Communication system
* Transmition receivers Generic photo used for illustration purposes only RAM-7+ CASE STYLE: AF190 +RoHS Compliant The +Suffix identifies RoHS Compliance. See our web site for RoHS Compliance methodologies and qualification

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RAM-7+, RAM-7+-Mini. Please refer to the document for exact specifications by model.

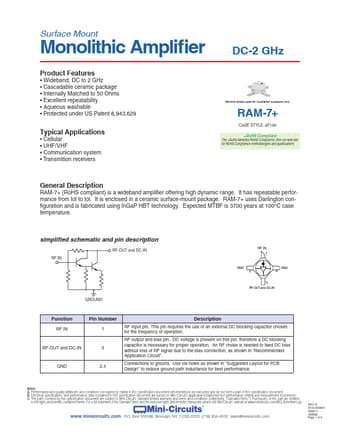

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RAM-7+, RAM-7+-Mini
Manufacturer
Mini-Circuits
File Size
196.86 KB
Datasheet
RAM-7+-Mini-Circuits.pdf
Description
Monolithic Amplifier
Note
This datasheet PDF includes multiple part numbers: RAM-7+, RAM-7+-Mini.
Please refer to the document for exact specifications by model.
