TCD-10-1W-75+, TCD-10-1W-75_Mini Datasheet - Mini-Circuits

TCD-10-1W-75+, TCD-10-1W-75_Mini, Directional Coupler

www.DataSheet.co.kr Directional Coupler 75Ω Maximum Ratings Operating Temperature Storage Temperature -40°C to 85°C -55°C to 100°C Surface Mount.

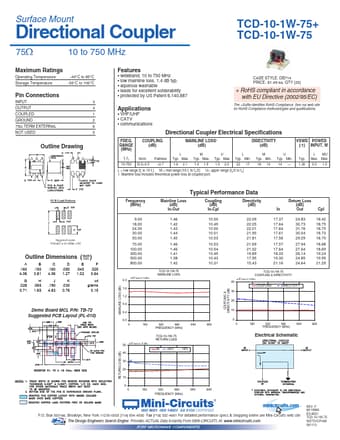

datasheet Preview Page 1 from Datasheet4u.com

TCD-10-1W-75_Mini-Circuits.pdf

TCD-10-1W-75+ Datasheet Preview — This datasheet PDF includes multiple part numbers: TCD-10-1W-75+, TCD-10-1W-75_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TCD-10-1W-75+, TCD-10-1W-75_Mini

Manufacturer:

Mini-Circuits

File Size:

350.43 KB

Description:

Directional Coupler

Note:

This datasheet PDF includes multiple part numbers: TCD-10-1W-75+, TCD-10-1W-75_Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 10 to 750 MHz
* low mainline loss, 1.4 dB typ.
* aqueous washable
* leads for excellent solderability
* protected by US Patent 6,140,887 CASE STYLE: DB714 PRICE: $1.49 ea. QTY (25) Pin Connections INPUT OUTPUT COUPLED GROUND 75Ω TERM EXTERNAL

Applications

* VHF/UHF
* CATV
* communications Directional Coupler Electrical Specifications FREQ. RANGE (MHz) fL-fU 10-750 Outline Drawing COUPLING (dB) Nom. 10.5±0.5 Flatness ±0.7 MAINLINE LOSS1 (dB) L Typ. Max. 1.6 2.1 M Typ. Max. 1.4 1.9 U Typ. Max. 1.5 2.0 L Typ. Min. 22 17 DIR
