TCD-10-4-75+ Datasheet, Coupler, Mini-Circuits

TCD-10-4-75+ Features

• Coupler
• wideband, 5-1000 MHz
• excellent flatness, ±0.1 dB typ.
• better performance than MA-COM EMDC-10-1-75
• footprint compatible to EMDC-10-1-75

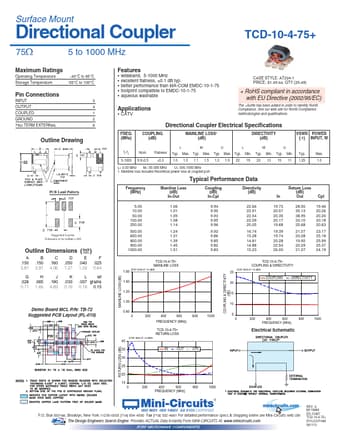

PDF File Details

Part number:

TCD-10-4-75+

Manufacturer:

Mini-Circuits

File Size:

320.27kb

Download:

📄 Datasheet

Description:

Directional coupler.

TCD-10-4-75+ Application

• Applications
• CATV Directional Coupler Electrical Specifications FREQ. (MHz) COUPLING (dB) L fL-fU 5-1000 Nom. 9.9±0.5 Flatness ±0.3 Typ.
