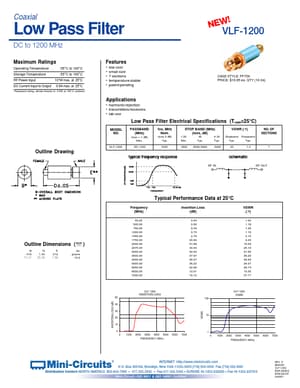

VLF-1200, VLF-1200_Mini Coaxial Low Pass Filter DC to 1200 MHz

Coaxial Low Pass Filter DC to 1200 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input DC Current Input to Output -55°C to 1.

VLF-1200_Mini-Circuits.pdf

VLF-1200 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-1200, VLF-1200_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-1200, VLF-1200_Mini

Manufacturer:

Mini-Circuits

File Size:

89.33 KB

Description:

Coaxial Low Pass Filter DC to 1200 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-1200, VLF-1200_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24)

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-1200 DC-1200 fco, MHz Nom. (loss 3 dB) Typ. 1530 STOP BAND (MHz) (loss, dB) f 20 Min. 1800 30 Typ. 2000-5000 fr 20
