VLF-120, VLF-120_Mini, Coaxial Low Pass Filter DC to 120 MHz

Coaxial Low Pass Filter DC to 120 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input DC Current Input to Output -55°C to 10.

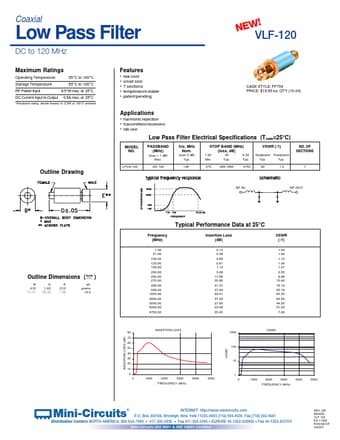

datasheet Preview Page 1 from Datasheet4u.com

VLF-120_Mini-Circuits.pdf

VLF-120 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-120, VLF-120_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-120, VLF-120_Mini

Manufacturer:

Mini-Circuits

File Size:

88.73 KB

Description:

Coaxial Low Pass Filter DC to 120 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-120, VLF-120_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24)

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. LFCN-120 DC-120 fco, MHz Nom. (loss 3 dB) Typ. 195 STOP BAND (MHz) (loss, dB) f 20 Min. 270 40 Typ. 285-1850 fr 20 Typ.
