VLF-1000, VLF-1000_Mini, Low Pass Filter DC to 1000 MHz

Coaxial Low Pass Filter DC to 1000 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input -55°C to 100°C -55°C to 100°C 10 *.

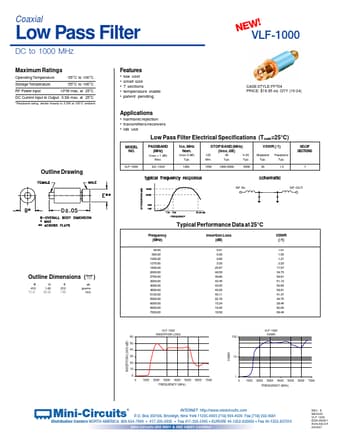

datasheet Preview Page 1 from Datasheet4u.com

VLF-1000_Mini-Circuits.pdf

VLF-1000 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-1000, VLF-1000_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-1000, VLF-1000_Mini

Manufacturer:

Mini-Circuits

File Size:

89.04 KB

Description:

Low Pass Filter DC to 1000 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-1000, VLF-1000_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24) DC Current Input to Output 0.5A max. at 25°C

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-1000 DC-1000 fco, MHz Nom. (loss 3 dB) Typ. 1300 STOP BAND (MHz) (loss, dB) f 20 Min. 1550 30 Typ. 1900-5000 fr 20
