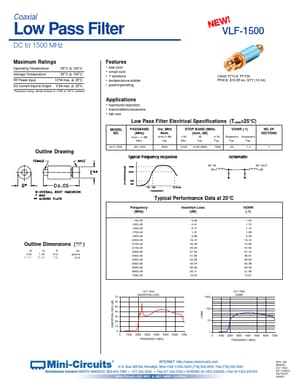

VLF-1500, VLF-1500_Mini Low Pass Filter DC to 1500 MHz

Coaxial Low Pass Filter DC to 1500 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input DC Current Input to Output -55°C to 1.

VLF-1500_Mini-Circuits.pdf

VLF-1500 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-1500, VLF-1500_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-1500, VLF-1500_Mini

Manufacturer:

Mini-Circuits

File Size:

89.92 KB

Description:

Low Pass Filter DC to 1500 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-1500, VLF-1500_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24)

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-1500 DC-1500 fco, MHz Nom. (loss 3 dB) Typ. 1825 STOP BAND (MHz) (loss, dB) f 20 Min. 2100 30 Typ. 2150-6800 fr 20
