VLF-1575+ Low Pass Filter

Coaxial Low Pass Filter 50Ω DC to 1575 MHz VLF-1575+ Maximum Ratings Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power Input 10W max. at 25°C DC Current Input to Output 0.5A max. at 25°C Passband rating, derate linearly to 3.5W at 100°C ambient. Permanent damage may occur if any of these limits are exceeded. Outline Drawing .312 Across Flats in some models Outline Dimensions ( inch mm ) B D .410 1.43 10.41 36.32 E wt .312 g.

VLF-1575+ Features

* rugged uni-body construction, small size

* 7 sections

* excellent power handling, 10W

* temperature stable

* low cost

* protected by U.S. Patent 6,943,646 Generic photo used for illustration purposes only CASE STYLE: FF704 Connectors SMA Model VLF

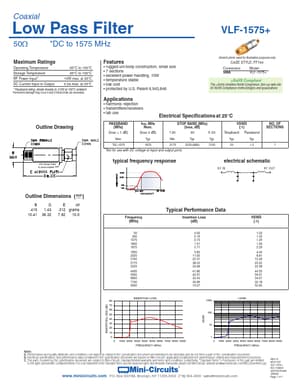

VLF-1575+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: VLF-1575+, VLF-1575+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-1575+, VLF-1575+-Mini

Manufacturer:

Mini-Circuits

File Size:

185.56 KB

Description:

Low pass filter.

Note:

This datasheet PDF includes multiple part numbers: VLF-1575+, VLF-1575+-Mini.
Please refer to the document for exact specifications by model.
