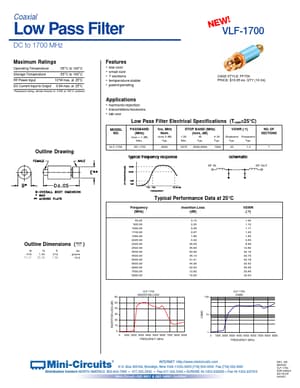

VLF-1700, VLF-1700_Mini Low Pass Filter DC to 1700 MHz

Coaxial Low Pass Filter DC to 1700 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input DC Current Input to Output -55°C to 1.

VLF-1700_Mini-Circuits.pdf

VLF-1700 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-1700, VLF-1700_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-1700, VLF-1700_Mini

Manufacturer:

Mini-Circuits

File Size:

88.95 KB

Description:

Low Pass Filter DC to 1700 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-1700, VLF-1700_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24)

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-1700 DC-1700 fco, MHz Nom. (loss 3 dB) Typ. 2050 STOP BAND (MHz) (loss, dB) f 20 Min. 2375 30 Typ. 2500-6500 fr 20
