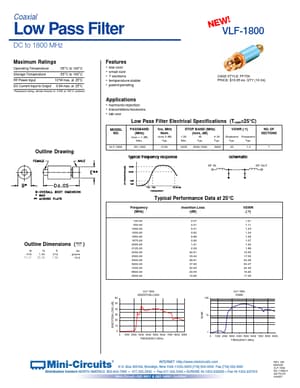

VLF-1800, VLF-1800_Mini Coaxial Low Pass Filter DC to 1800 MHz

Coaxial Low Pass Filter DC to 1800 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input DC Current Input to Output -55°C to 1.

VLF-1800_Mini-Circuits.pdf

VLF-1800 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-1800, VLF-1800_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-1800, VLF-1800_Mini

Manufacturer:

Mini-Circuits

File Size:

90.23 KB

Description:

Coaxial Low Pass Filter DC to 1800 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-1800, VLF-1800_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24)

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-1800 DC-1800 fco, MHz Nom. (loss 3 dB) Typ. 2125 STOP BAND (MHz) (loss, dB) f 20 Min. 2425 30 Typ. 2500-7200 fr 20
