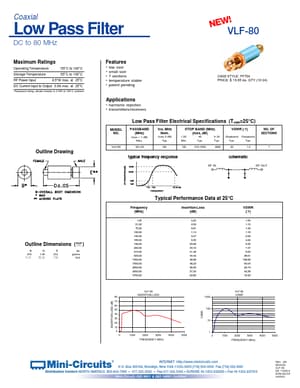

VLF-80, VLF-80_Mini Low Pass Filter DC to 80 MHz

Coaxial Low Pass Filter DC to 80 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input -55°C to 100°C -55°C to 100°C 8.5 *W.

VLF-80_Mini-Circuits.pdf

VLF-80 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-80, VLF-80_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-80, VLF-80_Mini

Manufacturer:

Mini-Circuits

File Size:

90.42 KB

Description:

Low Pass Filter DC to 80 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-80, VLF-80_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $ 19.95 ea. QTY (10-24) DC Current Input to Output 0.5A max. at 25°C

Applications

* harmonic rejection
* transmitters/receivers Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-80 DC-80 fco, MHz Nom. (loss 3 dB) Typ. 145 STOP BAND (MHz) (loss, dB) f 20 Min. 190 40 Typ. 215-1550 fr 20 Typ. 4500 VSWR (:1) Stop
