MT8972B (MT8971B) ISO2-CMOS ST-BUS FAMILY Digital Subscriber Interface Circuit Digital Network Interface Circuit

The MT8971B (DSIC) and MT8972B (DNIC) are multi-function devices capable of providing high speed, full duplex digital transmission up to 160 kbit/s over a twisted wire pair. They use adaptive echo-cancelling techniques and transfer data in (2B+D) format compatible to the ISDN basic rate. Several mod.

MT8972B Features

* Full duplex transmission over a single twisted pair Selectable 80 or 160 kbit/s line rate Adaptive echo cancellation Up to 3km (8971B) and 4 km (8972B) ISDN compatible (2B+D) data format Transparent modem capab

MT8971B_MitelNetworksCorporation.pdf

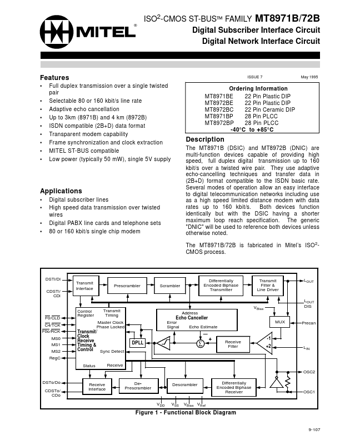

MT8972B Datasheet Preview — This datasheet PDF includes multiple part numbers: MT8972B, MT8971B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MT8972B, MT8971B

Manufacturer:

Mitel Networks Corporation

File Size:

390.64 KB

Description:

(mt8971b) iso2-cmos st-bus family digital subscriber interface circuit digital network interface circuit.

Note:

This datasheet PDF includes multiple part numbers: MT8972B, MT8971B.
Please refer to the document for exact specifications by model.
