BCR20A Triac

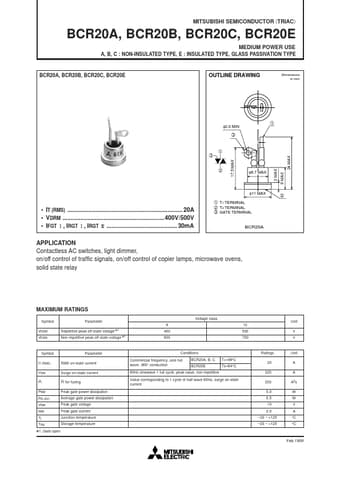

MITSUBISHI SEMICONDUCTOR 〈TRIAC〉 BCR20A, BCR20B, BCR20C, BCR20E MEDIUM POWER USE A, B, C : NON-INSULATED TYPE, E : INSULATED TYPE, GLASS PASSIVATION TYPE BCR20A, BCR20B, BCR20C, BCR20E OUTLINE DRAWING Dimensions in mm φ2.0 MIN 3 1 φ11 MAX 1 T1 TERMINAL 2 T2 TERMINAL 3 GATE TERMINAL 2 IT (RMS) 20A VDRM 400V/500V IFGT !, IRGT !, IRGT # 30mA BCR20A APPLICATION Contactless AC switches, light dimmer, on/off control of traffic signals, on/off control of copie.

BCR20A Datasheet (91.39 KB)
